Creating A Physical Standby Database (11gR2)

Written By askMLabs on Wednesday, December 7, 2011 | 8:41 AM

Setup:




Primary Site


Standby Site


Hostname


dgaskmpri01


dgaskmsby01


Database Name


orcl


orcl


Database Unique Name


orcl


sbyorcl


Net Service Name


orcl


sbyorcl



Prepared By SRI



Prepared By SRI


Primary Site Preparation :
1.      Enable Database Force Logging
2.      Create SRL (Standby Redo Logs)
3.      Modify Init.ora parameters
4.      Enable Archiving
5.      Backup Primary Database
6.      Create a controlfile for Standby Database
7.      Create a init.ora file for Standby Database
8.      Configure listener.ora and tnsnames.ora
9.      Copy backups and configuration files to Standby Server

Standby Site Preparation :
1.      Create a remote login password file ( if it is not copied from primary site )
2.      Create a directory structure
3.      Modify the init.ora parameter file
4.      Configure listener.ora and tnsnames.ora
5.      Verify connectivity

Creating Physical Standby Database :
1.      Start the physical Standby Database
2.      Keep it in recovery

Verifications

Primary Site Preparation :
1. Enable Database Force Logging:
SQL> select FORCE_LOGGING from v$database;
SQL> ALTER DATABASE FORCE LOGGING;
2. Create SRL ( Standby Redo Logs):
You need to create SRL with the same size or greater size as of the online redo logs and also the number of SRLs should be one greater than the online redologs.

SQL> select name,user from v$database;
NAME USER
--------- ------------------------------
ORCL SYS
SQL> col group# for 9999
SQL> col member for a50
SQL> set linesize 120
SQL> select name,user from v$database;
NAME USER
--------- ------------------------------
ORCL SYS
SQL> select GROUP#,THREAD#,MEMBERS,BYTES FROM V$LOG;
GROUP# THREAD# MEMBERS BYTES
------ ---------- ---------- ----------
1 1 1 52428800
2 1 1 52428800
3 1 1 52428800
SQL> select group#,member from v$logfile;
GROUP# MEMBER
------ --------------------------------------------------
3 /home/oracle/app/oracle/oradata/orcl/redo03.log
2 /home/oracle/app/oracle/oradata/orcl/redo02.log
1 /home/oracle/app/oracle/oradata/orcl/redo01.log
SQL> SELECT GROUP#, BYTES FROM V$STANDBY_LOG;
no rows selected
SQL> ALTER DATABASE ADD STANDBY LOGFILE ('/home/oracle/app/oracle/oradata/orcl/s_redo01.log') SIZE 52428800;
Database altered.
SQL> ALTER DATABASE ADD STANDBY LOGFILE ('/home/oracle/app/oracle/oradata/orcl/s_redo02.log') SIZE 52428800;
Database altered.
SQL> SELECT GROUP#, BYTES FROM V$STANDBY_LOG;
GROUP# BYTES
------ ----------
4 52428800
5 52428800
SQL> ALTER DATABASE ADD STANDBY LOGFILE ('/home/oracle/app/oracle/oradata/orcl/s_redo03.log') SIZE 52428800;
Database altered.
SQL> ALTER DATABASE ADD STANDBY LOGFILE ('/home/oracle/app/oracle/oradata/orcl/s_redo04.log') SIZE 52428800;
Database altered.
SQL> SELECT GROUP#, BYTES FROM V$STANDBY_LOG;
GROUP# BYTES
------ ----------
4 52428800
5 52428800
6 52428800
7 52428800
SQL>
3. Modify the init.ora parameters:
Modify the init.ora parameters on the primary database side to reflect the following values. If you are using spfile, you can add these parameter online without shutting down the primary database.
DB_NAME=orcl
DB_UNIQUE_NAME=orcl
LOG_ARCHIVE_CONFIG='DG_CONFIG=(orcl,sbyorcl)'LOG_ARCHIVE_DEST_1='LOCATION=/home/oracle/app/oracle/flash_recovery_area/orcl/ VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=orcl'LOG_ARCHIVE_DEST_2='SERVICE=sbyorcl ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=sbyorcl'LOG_ARCHIVE_DEST_STATE_1=ENABLE
LOG_ARCHIVE_DEST_STATE_2=ENABLE
REMOTE_LOGIN_PASSWORDFILE=EXCLUSIVE
LOG_ARCHIVE_FORMAT=%t_%s_%r.arc
LOG_ARCHIVE_MAX_PROCESSES=30
FAL_SERVER=sbyorcl
DB_FILE_NAME_CONVERT='sbyorcl','orcl'LOG_FILE_NAME_CONVERT='/home/oracle/app/oracle/flash_recovery_area/sbyorcl/','/home/oracle/app/oracle/flash_recovery_area/orcl/'STANDBY_FILE_MANAGEMENT=AUTO
4. Enable Archiving :

Make sure that your database is running in archive log mode. Because in a physical standby setup all the redologs generated on the primary database will be transferred to standby site and applied to the standby database.
SQL> shut immediate
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL> STARTUP MOUNT;
ORACLE instance started.
Total System Global Area 456146944 bytes
Fixed Size 1344840 bytes
Variable Size 381684408 bytes
Database Buffers 67108864 bytes
Redo Buffers 6008832 bytes
Database mounted.
SQL> ALTER DATABASE ARCHIVELOG;
Database altered.
SQL> ALTER DATABASE OPEN;
Database altered.
SQL> archive log list
Database log mode Archive Mode
Automatic archival Enabled
Archive destination /home/oracle/app/oracle/flash_recovery_area/orcl/
Oldest online log sequence 360
Next log sequence to archive 362
Current log sequence 362
SQL>

5.      Backup Primary Database :
In this demo I am using cold backup of the primary database. There are various other options like RMAN duplicate from active database to create physical standby database without even having the primary database backup in 11g. But in this article I am showing setup without RMAN and using simple sql commands.

Create a temporary directory (/tmp/askm/) on primary server and copy all the controlfile,online redolog files and database files to this location after shutting down the database.
6.      Create a controlfile for Standby Database:
SQL> startup mount
ORACLE instance started.
Total System Global Area 456146944 bytes
Fixed Size 1344840 bytes
Variable Size 381684408 bytes
Database Buffers 67108864 bytes
Redo Buffers 6008832 bytes
Database mounted.
SQL> ALTER DATABASE CREATE STANDBY CONTROLFILE AS '/tmp/askm/s_control01.ctl';
Database altered.
SQL> ALTER DATABASE OPEN;
Database altered.
7.  Create a init.ora file for Standby Database:
SQL> CREATE PFILE='/tmp/askm/initsbyorcl.ora' FROM SPFILE;
File created.

8. Configure listener.ora and tnsnames.ora:
[oracle@dgaskmpri01 admin]$ cat listener.ora
LISTENER_PRI =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1525))
)
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = dgaskmpri01.localdomain)(PORT = 1525))
)
)
SID_LIST_LISTENER_PRI =
(SID_LIST =
(SID_DESC =
(ORACLE_HOME = /home/oracle/app/oracle/product/11.2.0/dbhome_2)
(SID_NAME = orcl)
)
)
[oracle@dgaskmpri01 admin]$ cat tnsnames.ora
orcl =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = dgaskmpri01.localdomain)(PORT = 1525))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SID=orcl)
)
)
sbyorcl =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = dgaskmsby01.localdomain)(PORT = 1525))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SID=sbyorcl)
)
)
[oracle@dgaskmpri01 admin]$



9.      Copy backups and configuration files to Standby Server:
Create a temporary directory(/tmp/askm) on standby server and copy coldbackup, init.ora, password file(orapwsbyorcl) and standby controlfile (s_control01.ctl) from primary server to standby server.

Standby Site Preparation :

1.      Create a remote login password file ( if it is not copied from primary site )

Copy the password file /tmp/askm/orapwsbyorcl to $ORACLE_HOME/dbs

2.      Create a directory structure

If you are using a different directory structure on the standby server, they you need to create all the directories on the standby site.

Then copy coldbackup to the appropriate locations on the standby server. Also copy init.ora to $ORACLE_HOME/dbs location.
[oracle@dgaskmsby01]$ mkdir /home/oracle/app/oracle/oradata/sbyorcl/
[oracle@dgaskmsby01]$ mkdir /home/oracle/app/oracle/flash_recovery_area/sbyorcl/
[oracle@dgaskmsby01]$ cd $ORACLE_HOME/dbs
[oracle@dgaskmsby01 dbs]$ cd /home/oracle/app/oracle/oradata/sbyorcl/
[oracle@dgaskmsby01 sbyorcl]$ cp /tmp/askm/*.dbf .
[oracle@dgaskmsby01 sbyorcl]$ cp /tmp/askm/*.log .
[oracle@dgaskmsby01 sbyorcl]$ cp /tmp/askm/s_control01.ctl .
[oracle@dgaskmsby01 sbyorcl]$ cp /tmp/askm/s_control01.ctl /home/oracle/app/oracle/flash_recovery_area/sbyorcl/s_control02.ctl
[oracle@dgaskmsby01 sbyorcl]$ cp /tmp/askm/initsbyorcl.ora $ORACLE_HOME/dbs

3. Modify the init.ora parameter file

Modify the initsbyorcl.ora file to reflect the following initialization parameters
DB_NAME=orcl
DB_UNIQUE_NAME=sbyorcl
LOG_ARCHIVE_CONFIG='DG_CONFIG=(orcl,sbyorcl)'CONTROL_FILES='/home/oracle/app/oracle/oradata/sbyorcl/s_control01.ctl', '/home/oracle/app/oracle/flash_recovery_area/sbyorcl/s_control02.ctl'DB_FILE_NAME_CONVERT='orcl','sbyorcl'LOG_FILE_NAME_CONVERT='/home/oracle/app/oracle/flash_recovery_area/orcl/','/home/oracle/app/oracle/flash_recovery_area/sbyorcl/'LOG_ARCHIVE_FORMAT=%t_%s_%r.arc
LOG_ARCHIVE_DEST_1='LOCATION=/home/oracle/app/oracle/flash_recovery_area/sbyorcl/ VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=sbyorcl'LOG_ARCHIVE_DEST_2='SERVICE=orcl ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=orcl'LOG_ARCHIVE_DEST_STATE_1=ENABLE
LOG_ARCHIVE_DEST_STATE_2=ENABLE
REMOTE_LOGIN_PASSWORDFILE=EXCLUSIVE
STANDBY_FILE_MANAGEMENT=AUTO
FAL_SERVER=orcl
4. Configure listener.ora and tnsnames.ora:
[oracle@dgaskmsby01 admin]$ cat listener.ora
LISTENER_SBY =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1525))
)
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = dgaskmsby01.localdomain)(PORT = 1525))
)
)
SID_LIST_LISTENER_SBY =
(SID_LIST =
(SID_DESC =
(ORACLE_HOME = /home/oracle/app/oracle/product/11.2.0/dbhome_2)
(SID_NAME = sbyorcl)
)
)
[oracle@dgaskmsby01 admin]$ cat tnsnames.ora
orcl =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = dgaskmpri01.localdomain)(PORT = 1525))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SID=orcl)
)
)
sbyorcl =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = dgaskmsby01.localdomain)(PORT = 1525))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SID=sbyorcl)
)
)
[oracle@dgaskmsby01 admin]$
5. Verify connectivity
On Primary Server:
[oracle@dgaskmpri01]$ lsnrctl stop LISTENER_PRI
[oracle@dgaskmpri01]$ lsnrctl start LISTENER_PRI
[oracle@dgaskmpri01]$ tnsping orcl
[oracle@dgaskmpri01]$ tnsping sbyorcl
[oracle@dgaskmpri01]$ sqlplus sys/xxxxx@orcl
[oracle@dgaskmpri01]$ sqlplus sys/xxxxx@sbyorcl
On Standby Server:
[oracle@dgaskmsby01]$ lsnrctl stop LISTENER_SBY
[oracle@dgaskmsby01]$ lsnrctl start LISTENER_SBY
[oracle@dgaskmsby01]$ tnsping orcl
[oracle@dgaskmsby01]$ tnsping sbyorcl
[oracle@dgaskmsby01]$ sqlplus sys/xxxxx@orcl
[oracle@dgaskmsby01]$ sqlplus sys/xxxxx@sbyorcl
Creating Physical Standby Database :
1.      Start the physical Standby Database:
SQL> startup mount
ORACLE instance started.
Total System Global Area  456146944 bytes
Fixed Size                  1344840 bytes
Variable Size             381684408 bytes
Database Buffers           67108864 bytes
Redo Buffers                6008832 bytes
Database mounted.
SQL>
2.      Keep it in recovery:
SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;

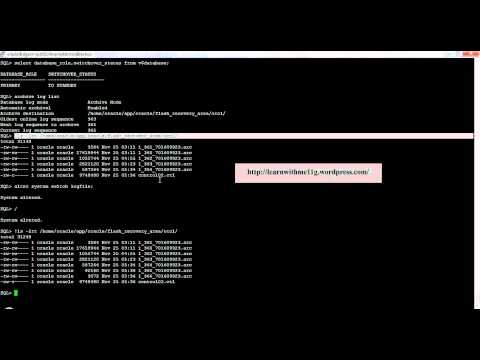

Verifications :
On Standby:
SELECT SEQUENCE#, FIRST_TIME, NEXT_TIME FROM V$ARCHIVED_LOG ORDER BY SEQUENCE#;

On Primary :
Do some redo log switches
SQL> ALTER SYSTEM SWITCH LOGFILE;
On Standby:
  Verify that the recent archived log file is shifted to standby side and applied with the following commands.
SQL> SELECT SEQUENCE#, FIRST_TIME, NEXT_TIME FROM V$ARCHIVED_LOG ORDER BY SEQUENCE#;
SQL> SELECT SEQUENCE#,APPLIED FROM V$ARCHIVED_LOG ORDER BY SEQUENCE#;



Other Useful Information:

To verify all the init.ora parameter in a single command:
egrep -i "DB_NAME|DB_UNIQUE_NAME|LOG_ARCHIVE_CONFIG|CONTROL_FILES|LOG_ARCHIVE_DEST_1|LOG_ARCHIVE_DEST_2|LOG_ARCHIVE_DEST_STATE_1|LOG_ARCHIVE_DEST_STATE_2|REMOTE_LOGIN_PASSWORDFILE|LOG_ARCHIVE_FORMAT|LOG_ARCHIVE_MAX_PROCESSES|FAL_SERVER|DB_FILE_NAME_CONVERT|LOG_FILE_NAME_CONVERT|STANDBY_FILE_MANAGEMENT" <specify init.ora parameter file>
To Cancel the Standby Recovery Mode:
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;
Useful commands To Troubleshoot:
select message from v$dataguard_status where dest_id = 2;
select archived_thread#, archived_seq#, applied_thread#, applied_seq# from v$archive_dest_status;
select registrar, creator, thread#, sequence#, first_change#, next_change# from v$archived_log;
select thread#, sequence#, first_change#, next_change# from v$log_history;
To Verify Recover Process On Standby:
select thread#, sequence# from v$log where status='CURRENT'; = > On Primary
select thread#, sequence#, status from v$managed_standby where process='MRP0'; = > On Standby
References :
http://download.oracle.com/docs/cd/E11882_01/server.112/e25608/create_ps.htm#i63561
MOS ID :  249703.1

Hope It Helps

SRI
